Brief content of Numerical post 4.

4-Fixed-point iteration and how to use it?

Fixed point iteration.

The objective of our lecture is to understand the following points, what is the meaning of fixed-point iteration? What is the linear approximation newton method of root finding?  We get x1, using fixed-point iteration, if we plug in x1 again we get X 2.

We substitute we get X 3, so we will repeat the process until the result of X obtained is the same for successive steps.

The video I used for illustration.

If you wish to review the pdf data used in the illustration, please continue reading.

You can click on any picture to enlarge, then press the small arrow at the right to review all the other images as a slide show.

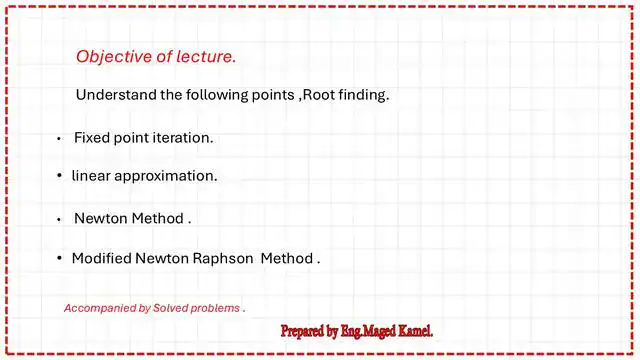

The objective of the lecture.

All these methods are accompanied by the solved problems. If we start x0, then we get an expression for X1. We substitute our first choice of the value of x.

Normally we write the function as Y is an f(x), but if we want to get an expression for x. We can put x on the left-hand side and readjust our equation by getting an expression f(x)=0, to be arranged as follows.

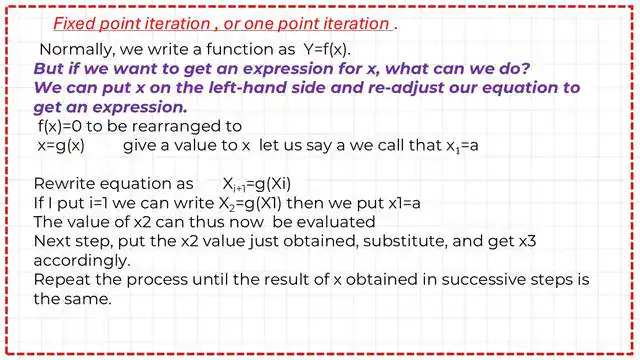

What is fixed point iteration?

We put X on the left-hand side so it will become in the expression = g(x). The new form will be xi=g(x). We can get a value to x starting by X =a

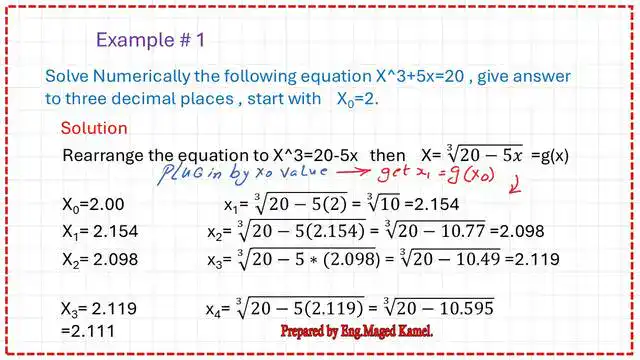

Solved example-1 by fixed-point iteration.

Solve numerically the following equation X^3+5x=20. Give the answer to 3 decimal places.
Start with X0 = 2. sometimes in the example, the author is giving us a starting point then we are rearranging the equation to become as follows:

1-We choose to let X ^3 on the left-hand side, so we are sending 5x with a negative sign.

Solved problem by fixed point iteration.


2- The equation will become x^3=20-5x, then for the X value, we take the third root of the equation. So X is the 3rd root of (20-5*x) we call it g(x).

\begin{equation} X=\sqrt[3]{20-5 x}=g(x) \end{equation}

How to get x1 value by fixed-point iteration?

3- Our starting value of x we call it x0=2, this is a value which he has given us and substitute in the equation, then we get a value of x1=2.154, the calculation can be viewed from the next equation.

\begin{equation} x 1=\sqrt[3]{20-5(2)}=\sqrt[3]{10}=2.154 \end{equation}

How to get x2 value by fixed-point iteration?

For the next point, we call it x2.
4-If we plug that value here we get X2 then if we substitute the X 2 value will become the third root of (20 -10.77) =2.098.

\begin{equation} x 2=\sqrt[3]{20-5(2.154)}=\sqrt[3]{9.230}=2.0976 \end{equation}

How to get x3 value by fixed-point iteration?

5- Again we put the value of 2.098 in the expression of g(x), x3=we get, X3 which is 2.119, use the value of X3. We substitute we get X4 the value is 2.111.

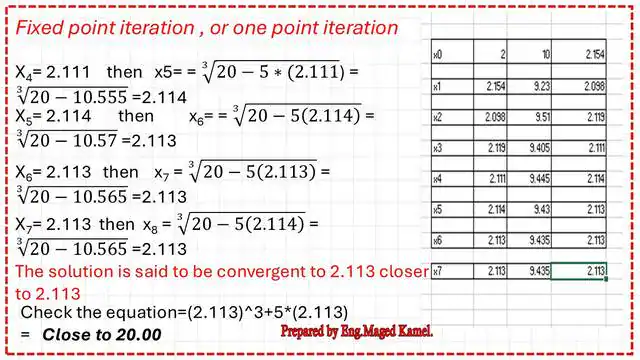

Solved problem by fixed point iteration.

We proceed the same with x4, we plug it here. We get X5 and X6 and X7 and X8. After 7 iterations, the right-hand side is close to a value of 20 for x7=2.113.

The table indicates the different values based on the fixed-point iteration.

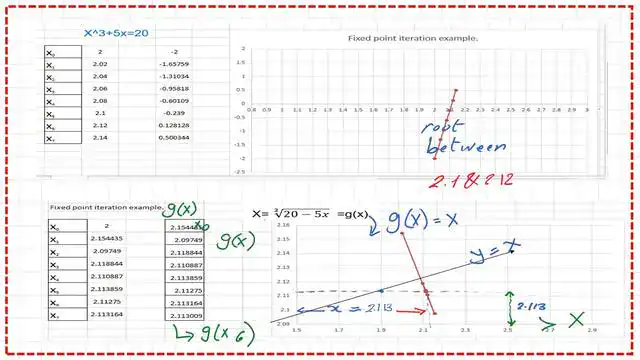

Graph of f(x) and g(x) solved example-1

These are two graphs the upper one shows the f(x) function and its intersection with the x-axis. The root is between 2.1 and 2.11 for the function X^3+5x=20.

Using the fixed point iteration created a new function which is called g(x), the graph is shown. The intersection of g(x) with the function y=x, will give the root value, which is x7=2.113

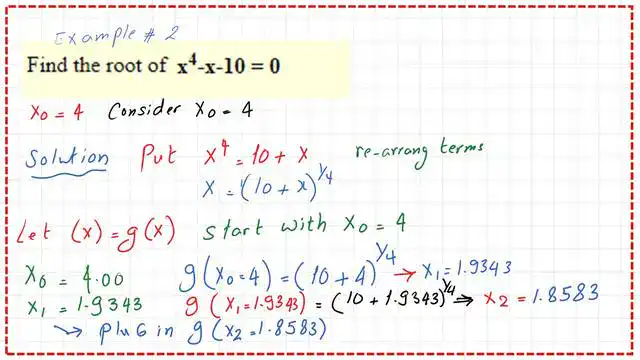

Solved example-2 by fixed-point iteration.

The solved example-2 It is required to find the root for x^4-x-10=0, the same procedure that we have adopted for the previous example will be followed.

Solved example-2


Create a g(x)=(10+x)^4, the initial point given is x0=4. Plug in to get the value of x1.

The slide image shows the table of points of x from x=4 till x=1.8555 and the corresponding value of g(x). We are looking for the intersection point between this g(x) and y=x, or simply when we plug in a certain value of x we get the same value in y.

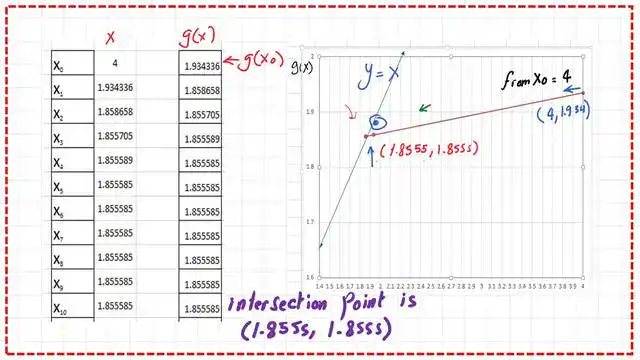

Graph of g(x) for solved example-2

The point coordinate is (1.85555,1.8555), which is obtained from 6 iterations.

The curve is drawn with the shown x and Y-axis. The zero point will be very close to 1.8555.

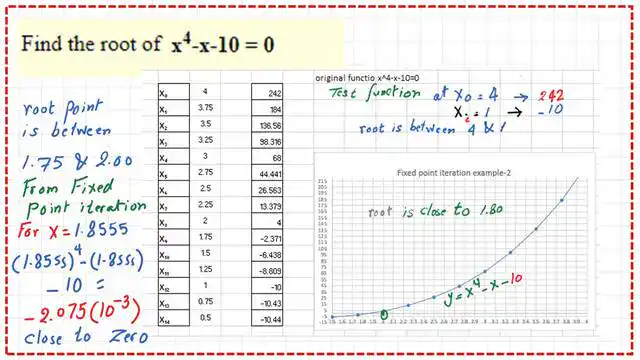

Graph for f(x) .

The slide image shows the table of points of x from x=4 till x=0.50 and the corresponding value of f(x).

We are looking for the intersection point between 1.75, and 2.00. The previous value of 1.8555, obtained from the fixed point iteration will give a y value close to 0.

This is a link to download the Pdf used for the illustration of this post

The next post is the Newton-raphson method which is another iteration method.
