Solved problem 8-22-for Plastic nominal load( 2/2).
In the second part of the solved problem 8-22, we will verify our nominal load values as we have estimated in post 35- part 1/2.

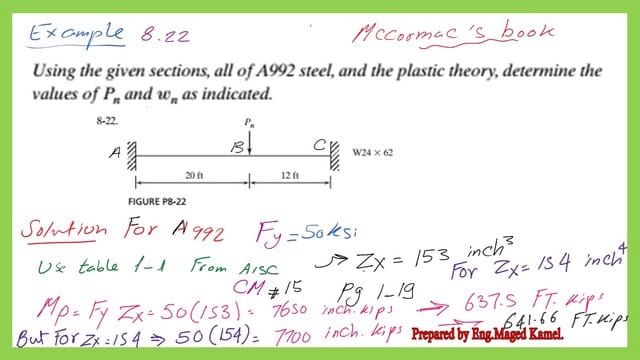

This is a reminder of the solved problem 8-22; we have a fixed end beam of W24x62 under nominal load. The yield stress is 50 ksi, Zx equals 153.0 inch3, so the nominal or the plastic moment will be 50×153=7650 inch. Kips, and in ft., kips will be equal to 637.50. But in MASTAN 2, the Zx equals 154.0inch3, which will lead to Mp= 7700 inch. kips and 641.66 ft.kips.
![pict- 1-post 35A- steel beam Solved problem 8-22, what is the value for plastic moment?](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-1-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 1-post 35A- steel beam Solved problem 8-22, what is the value for plastic moment?](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-1-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
The data for plastic hinges for solved problem 8-22 from MASTAN-2.

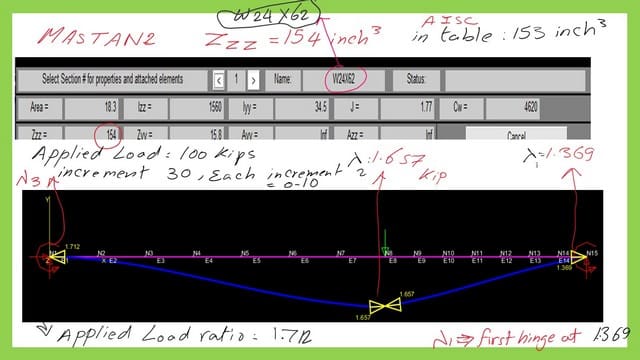

In the next slide image, we have a snapshot of the section of W24x62 and the relevant Zxof 154.0 inch3. The applied load is 100 kips; I have used 30 increments, each increment of 0.10, and the maximum load ratio is 3.
Three plastic hinges were created, the first of which has a lambda value of 1.369. The second plastic hinge has a lambda value of 1.657, and the third has a lambda value of 1.712.
Using the first-order inelastic analysis, a nominal load of (1.369*100)=136.90 kips will create the first plastic hinge. At Pn=165.70 kips, we have two plastic hinges. Applying the nominal load of 171.10 kips will create three plastic hinges.
![pict- 2-post 35A- steel beam The places of plastic hinges .](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-2-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 2-post 35A- steel beam The places of plastic hinges .](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-2-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
The location of the first plastic Hinge and relevant data.

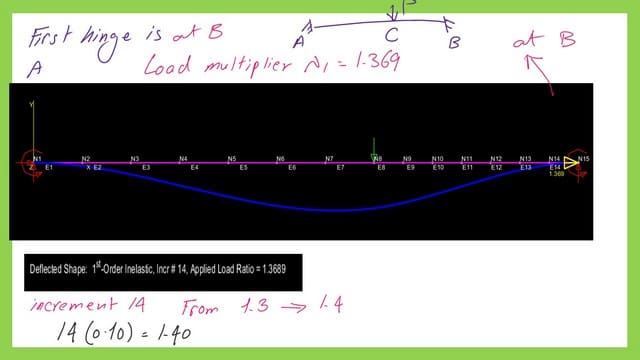

With the help of MASTAN-2, we can find the location of the first hinge. It will be located at support B under a load of 1.369*100=136.90 kips. This is the 14th increment from 1.3 to 1.40 multiplier of 100 kips.
![pict- 3-post 35A- steel beam](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-3-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 3-post 35A- steel beam](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-3-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)

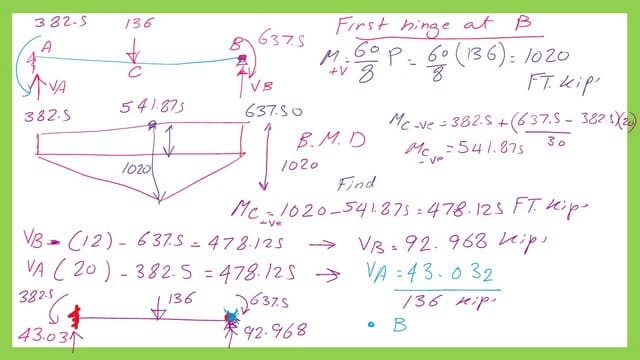

This is a reminder of our previous discussion about the first plastic hinge, in which we included that a nominal load of 136.0 kips will cause the first hinge to be created, and the values of shear at A and B are VA=43.032 kips and VB=92.968 kips. the relating MA=382.50 ft. kips and the Mb=Mp=637.50 ft.kips.
![pict- 4-post 35A- steel beam Information about the shear and moment for the first plastic hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-4-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 4-post 35A- steel beam Information about the shear and moment for the first plastic hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-4-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)

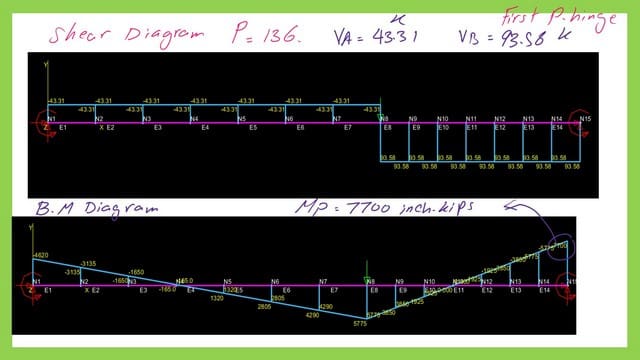

The next slide image contains the shear force diagram and the bending moment diagram for the first plastic hinge’s nominal load of 136.9 kips.
There is a slight difference between the VA and vb values created by MASTAN-2 and our calculation for shear because of the Zx value difference. The Mp value is 7700 inch. kips, while our estimation is Mp=7650 inch. kips.
![pict- 5-post 35A- steel beam The shear and moment values for a nominal load that creates the first hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-5-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 5-post 35A- steel beam The shear and moment values for a nominal load that creates the first hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-5-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
The second plastic Hinge and relevant data.
This is a reminder of our previous discussion about the second plastic hinge, in which we included a nominal load of 160.72 kips that will cause the second hinge to be created.
The shear values at A and B are VA=54.47 kips and VB=106.25 kips. The corresponding MA=452.04 ft. kips and the Mb=Mp=637.50 ft. kips. The second plastic hinge is at C with a value of 637.50 ft. kips.
![pict- 6-post 35A- steel beam The data for the second plastic hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-6-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 6-post 35A- steel beam The data for the second plastic hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-6-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)

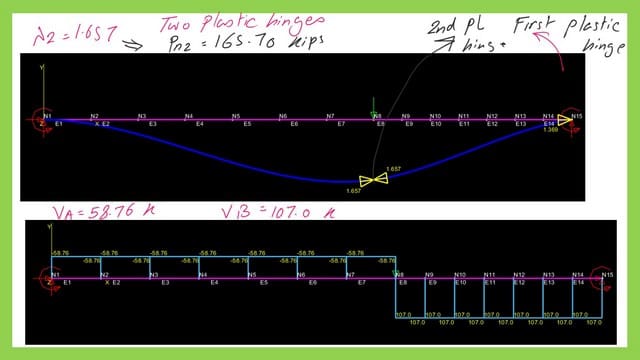

The second hinge is created under a load of 1.657* 100 = 165.70 kips. This is the 17th increment from 1.6 to 1.70 multiplier of 100 kips. The shear value vA=58.76 kips and Vb=107.0 kips.
![pict- 7A-post 35A- steel beam The data for the second plastic hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-7A-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 7A-post 35A- steel beam The data for the second plastic hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-7A-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
This is a snapshot of the moment diagram for the 2nd plastic hinge moments. The values are in inches. Kips.
![pict- 8-post 35A- steel beam the bending moment diagram by MAStan 2 for the second hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-8-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 8-post 35A- steel beam the bending moment diagram by MAStan 2 for the second hinge.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-8-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
The third plastic Hinge and relevant data.
The second hinge is created under a load of 1.7118* 100 = 171.18 kips. This is the 18th increment from 1.7 to 1.80 multiplier of 100 kips. The shear value vA=64.18 kips and Vb=107.0 kips.
![pict- 9-post 35A- steel beam](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-9-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 9-post 35A- steel beam](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-9-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)

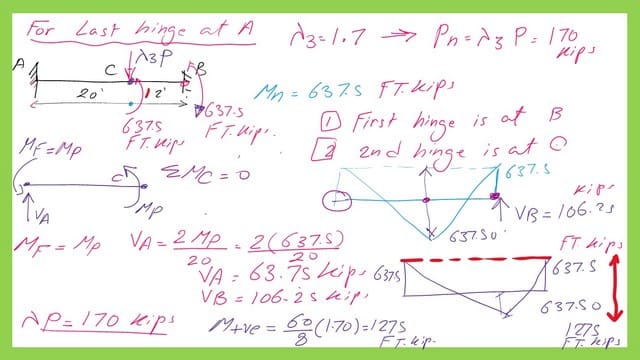

This is a reminder of our previous discussion about the third plastic hinge, in which we included a nominal load of 170 kips that will cause the third hinge to be created.
The shear values at A and B are VA=63.75 kips and VB=106.25 kips. The corresponding MA=452.04Mp=637.50 ft. kips and the Mb=Mp=637.50 ft. kips. The second plastic hinge is at C, with M= 637.50 Ft. kips.
![pict- 10-post 35A- steel beam The sheara nd moment values for the third plastic hinge nominal load.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-10-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
![pict- 10-post 35A- steel beam The sheara nd moment values for the third plastic hinge nominal load.](https://b3049824.smushcdn.com/3049824/wp-content/uploads/2024/05/pict-10-post-35A-steel-beam.jpg?lossy=2&strip=1&webp=1)
Thanks a lot. I hope you find the post intersecting. Here’s a link to the first part of this post.
Have more information about the structural analysis –III.
For the next post, A Solved problems 8-32 for the plastic Nominal Uniform load.
