Find the Fcr Value for a slender column-Solved Problem 5-10 with more iterations.
Solved Problem 5-10 with more iterations to find available Strength.
This is the same solved problem 5-10 from the Unified Design of Steel Structures by Prof. Louis F. Geshwendener. Determine the available Strength of a slender-web compression member. The steel section is a W16x26 column with a length of 5.0 ft.
I have solved this problem in accordance with the CM#14-2010 specifications.
The Modulus of elasticity Value E is equal to 29000 ksi, while the yield stress Fy equals 50 Ksi.

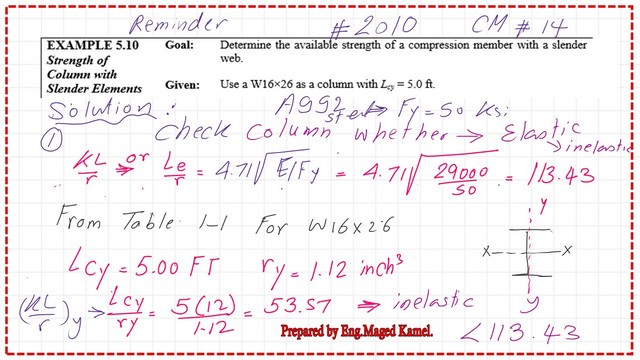

Step-1- Check whether the column is long or shortby using the limiting ( kL/r) vaValueor the solved problem 5-10, estimated from the formula (KL/r)=4.71sqrt(E/FY)=4.70*SQRT(29000/50)=113.43. From the previous Post, Kl/r in the y-direction equals 53.57. Please refer to Post 16 for more details
Confirm that the column is inelastic.
Step 2-Get the Area of the section and the Value of ry (radius of Gyration about y) for solved problem 5-10 with more iterations. This is a reminder of the Value of Kl/r in the y-direction.
From Table 1-1 of W 16×26, we get the data for the Area, try, d, h, t-web, and (Kl/r) in the y-direction (1*5*12/1.12)=53.57, which is < 113.43; thus, the column is inelastic.

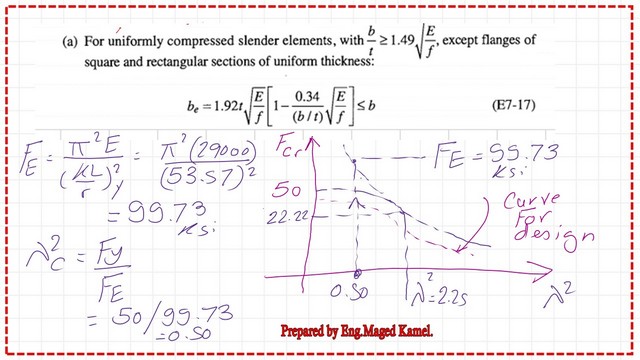

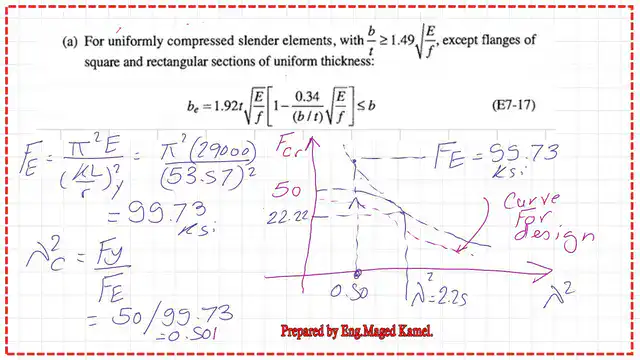

From the previous Post (Post 16), we estimated the Euler stress. It equals 99.73 ksi. The lambda^2 Value equals 0.50. Please refer to the following slide image for more details.

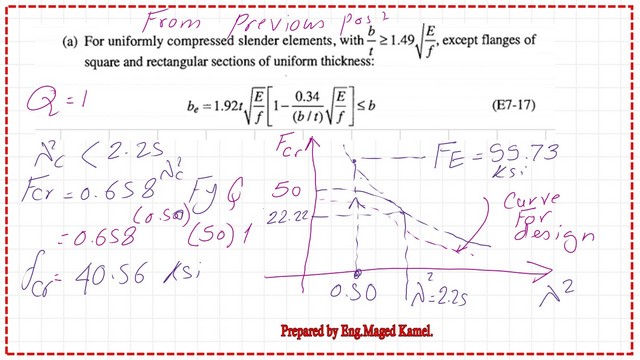

The estimated critical stress is 40.54 ksi, based on Q = 1.0.
From the previous Post, the LRFD Value Is Φc*Pn i=Φc*Fcr*Ag = 0.90*40.50*7.68 = 280.0 = 280.0 kips. For the ASD Value, Ag*Fcr/Ω = 7.68*40.50/1.67 = 187.0 kips.
Change the Value of Q based on the previous estimate.

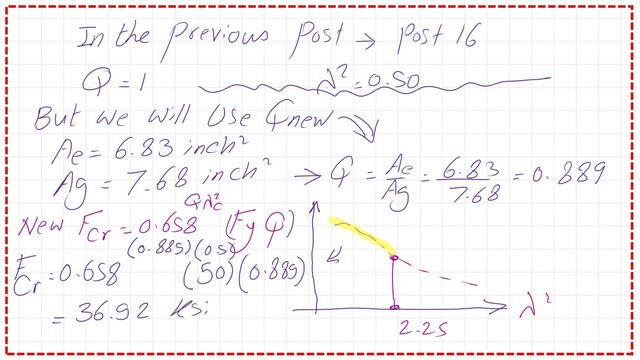

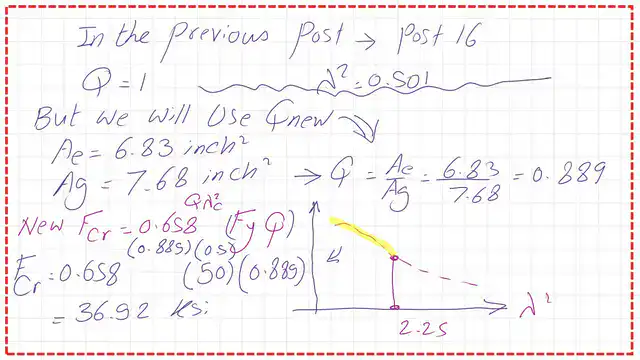

From the previous Post, the effective Area is 6.83 in², while the gross Area is 7.68 in². The Q Value is the ratio Aef/Ag = 6.83/7.68 = 0.889. Based on the new Q Value, we will re-estimate the critical stress as 36.92 ksi. The calculation is shown in the slide.
Based on the new Value of fcr, we will estimate the LRFD Value: Φc*Pn = Φc*Fcr*Ag = 0.90*36.92*7.68 = 256 kips. For the ASD Value, Ag*Fcr/Ω = 7.68*36.92/1.67 = 170 kips.

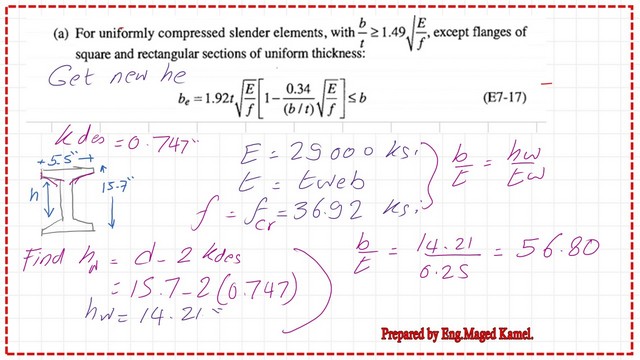

We will estimate the new Web height based on the latest Fcr Value using equation E7-17.

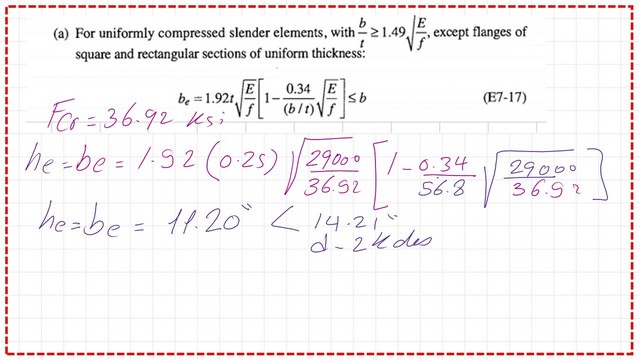

Estimating the new reduced Web height Value after introducing fcr in the formula (36.90 ksi, we get he=11.20″<14.21″.
Find the estimated effective Area for solved problem 5-10 with more iterations.
We can determine the effective Area of the Web by subtracting the ineffective Web Area from the total section Area. The gross Area equals 7.68 in2, the Web Area equals 3.55 in2, and the Web effective Area is 2.80 in2.
We can find that the column’s effective Area equals 6.93 inch2. Please refer to the slide image below.

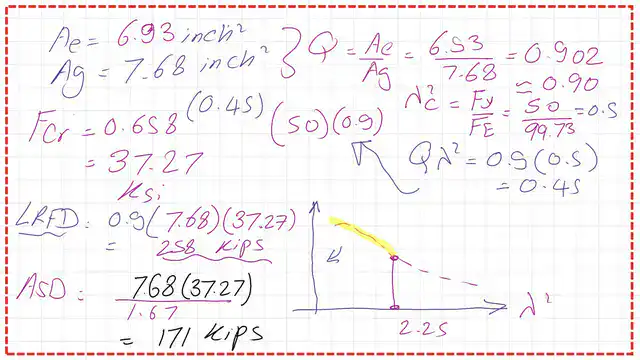

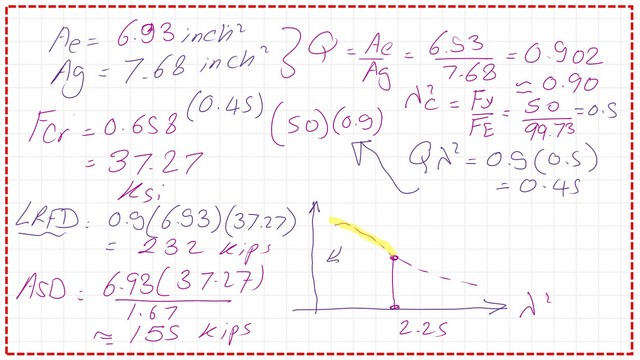

We will estimate the new Q Value and proceed to find the Fcr Value. The latest Q will be (6.93/7.68) = 0.90. Get the new Value for Fcr by using the equation FCr=0.658^(λ2*Q)(Q*Fy)=37.26 ksi.
The LRFD compression Strength for the W16x26 column is Φc*Pn = Φc*Fcr*Ag = 0.90*37.27*7.68 = 258 kips.
While for the ASD Value, Pn/Ω = 37.27*7.68/1.67 = 171.0 kips.
Check our estimated factored available Strength using Table 6- 1, CM#14-2010.

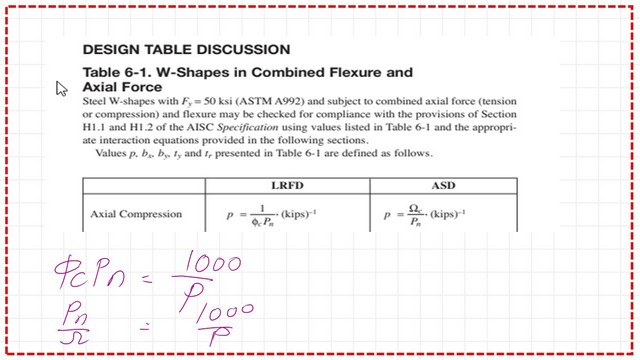

We will verify our available Strength using Table 6-1, per CM#14. In that Table, we will multiply the tabulated Value by 1000/p for the LRFD and ASD values. p is the ratio (1/φc*Pn) for the LRFD design, while for ASD it equals (1/Ωc*Pn). Please refer to the slide image below.

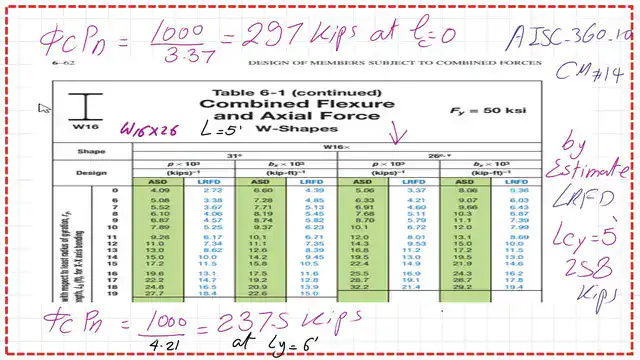

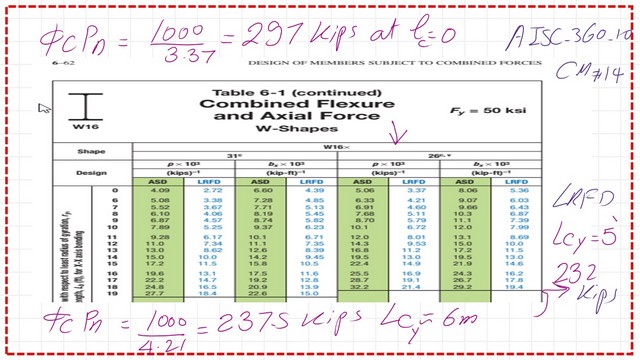

We have two LRFD values: the first, for Kl about the Y-axis, equals zero, which is 1000/3.37 = 297 kips. For Kly = 6 feet, the LRFD Value equals 1000/4.21 = 237.50 kips.
Our estimated LRFD Value for lc = 5 feet equals 258 kips, which falls between the two values and is acceptable.

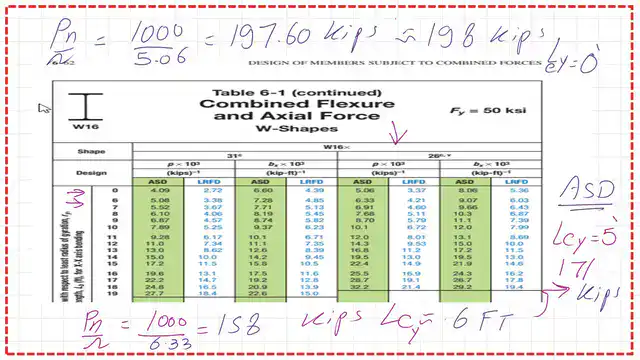

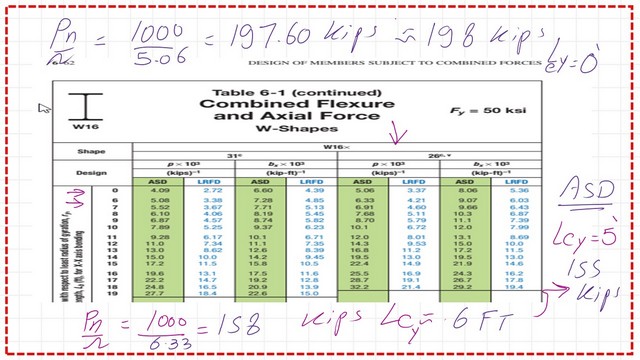

We have two ASD values: the first, Kly about the Y-axis, equals zero, which is 1000/5.06 = 198 kips. For Kly = 6 feet, the ASD Value equals 1000/6.33 = 158 kips.
Our estimated ASD Value for lc = 5 feet equals 171 kips, which falls between the two values and is acceptable. Thanks a lot.
