Bearing Type connections-part-2.

Summary of the post content.

The nominal tensile strength for a bolt Rn.

In this post, bearing type connections-part-2. The distance le is the edge distance from the boltcenterline to the edge.

We are concerned with the distance behind the bolt (Le-d/2), where le is the distance from the Cg of the external bolt to the adjacent edge. At the same time, d is (the diameter of the bolt+1/16″).

The clear distance is called lc outer Lco, which is the distance from the edge of the external bolt to the edge of the plate. This is the section of the two connected plates on the following slide.

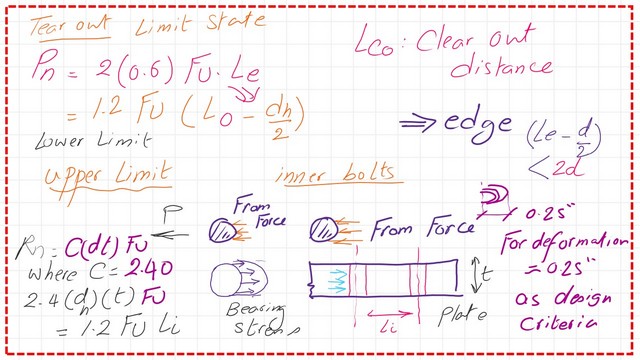

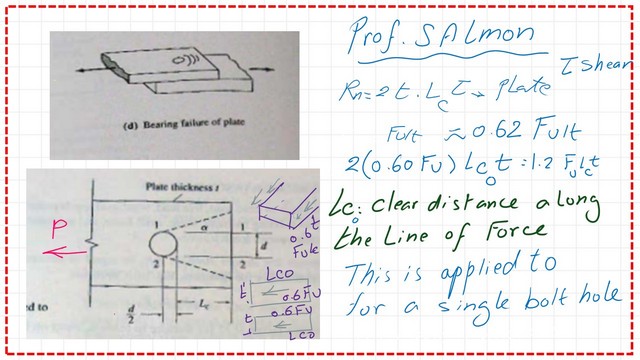

Rn is the nominal bearing force due to the application of a tension force at the left; Rn is the sum of the two forces at each side of line 1-1 and line 2-2 and can be estimated as equal to 2*0.6Fu*Lco*tp since the shear strength is calculated as equals 0.60Fu. The length of each side equals lco, and the height of the plate equals t.

If the surrounding material is weak, the bolt will be stronger than the surrounding material due to tearing the shear plane. What will happen? Two forces will resist the tear-out; the sum of these forces is equal to 1.2*Fu*tpl*Lo, where Lo is the clear distance from the edge of the bolt.

We will examine the inner distance between two bolts. The nominal force R is split into R/2 and R/2. The shear strength of the plate’s material =lc*t*0.60 Fu.

The value of Re is the lower limit if Lco is less than 2d.

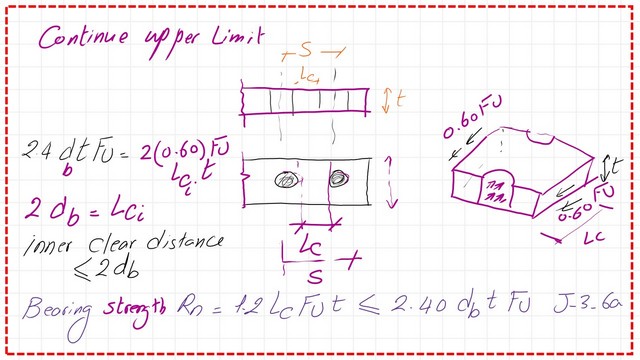

The upper limit is achieved when lc=2d—the nominal reResistancequals 2*0.60*Fu*2d*t*2=2.4*Fu*t*Lco.

AISC equations for bearing connections.

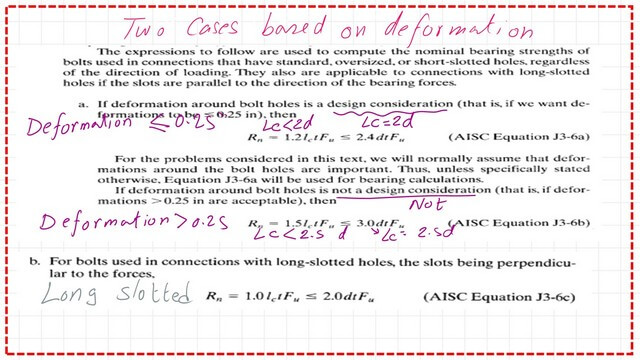

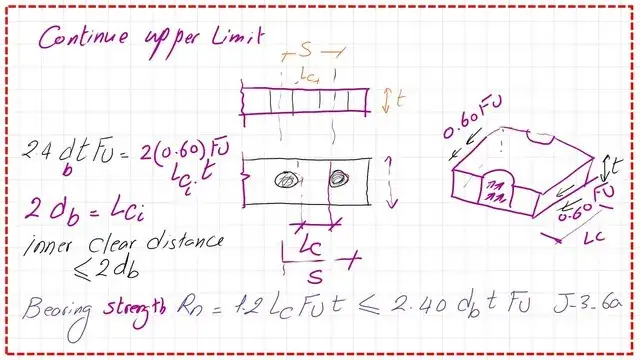

For the next slide, a series of equations Rn= 1.20*Lc*t*Fu.< or =2.40*d*t*Fu, if deformation around bolt holes is a design consideration if the deformation is less or equal to 0.25 inches. The value of (1.20*Lc*t*Fu) is reached when lc is less than 2dh.

The upper limit value of (2.40*d*t*Fu) is reached when lc equals 2dh.
But if the deformation is>0.25 inches and is not a design consideration, then Rn= 1.50*Fu*Lc*t <= 3.0*d*t*Fu. There is another condition for long slotted holes.

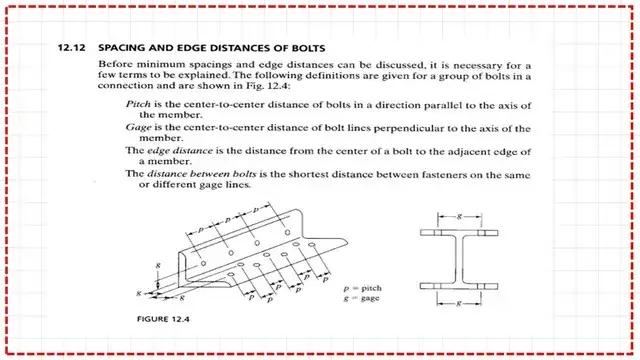

In the next slide, refer to the definitions. The distance between the centerline of bolts in the direction parallel to the axis of the member is the pitch P. S is the gage distance, which is the distance between the centerline of bolts in the direction perpendicular to the axis of the member and the edge distance.

Minimum edge distance of bolts: Tables J3.4 and J3.4M.

In the next slide, the minimum edge distance varies with both diameters and follows the Table in J3.4. The metric version of the same table, J3.4M, is also included.

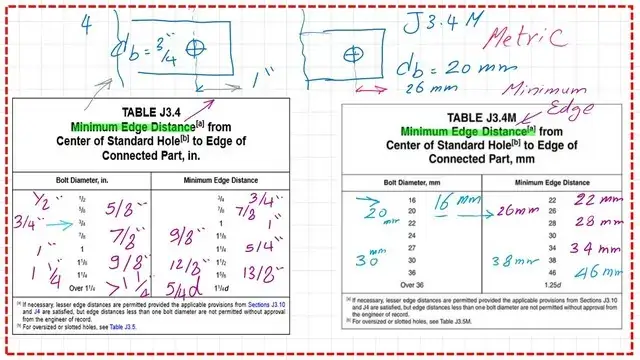

If we have a bolt diameter of 3/4 inch, the minimum edge distance is equal to 1 inch. For the metric dimension, a bolt with a diameter of 20mm will have a minimum edge distance of 20mm, as shown in Table J3.4M.

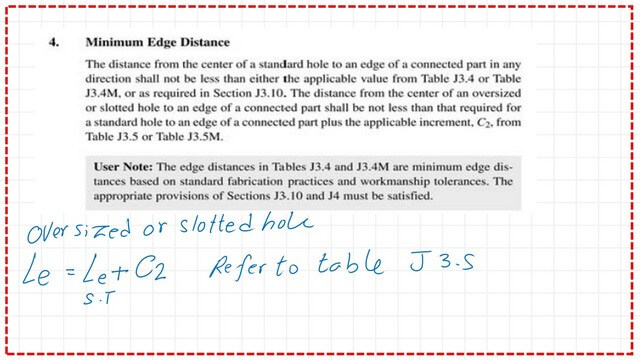

The minimum external for oversized or slotted holes equals le plus c2, where c2 is obtained from Table J3.5.

Minimum Spacing S and the inner distance between bolts.

In the post-Bearing Type connections, Part 2. The minimum spacing between bolts is S.

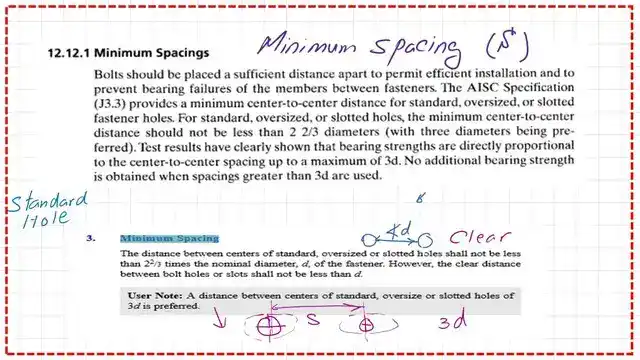

The minimum center-to-centerline distance is not less than (2 2/3 db), where db is the bolt diameter. Preferably, it should be 3d, or 3 diameters. But the clear distance should be at least d.
Minimum Center to Center should be not less than 2  2/3 diameter.

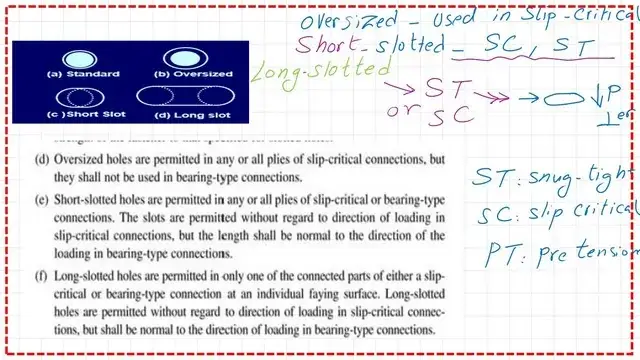

The following slide image shows the different types of holes. Oversized holes are used in slip-critical connections, while short slotted holes can be used for slip-critical and snug-tight connections. The long slotted holes can be used for slip-critical and snug-tight connections.

Nominal Hole dimension for bearing-type connection.

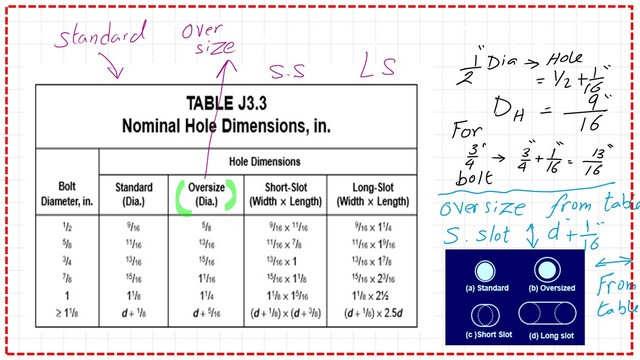

For the Hole diameter, add 1/16″ to the bolt diameter, unlike in tension members we were adding (1/16″+1/16″) to the bolt diameter For the calculations. For instance, for a 3/4 ” diameter bolt add 1/16″, then the standard dia will be  (3/4+1/16)=13/16″  as shown in table J3.3. The table gives the different Hole dimensions as four standard oversized short and long slots. There is a sketch of the various types of holes; please refer to the next slide.

The nominal strength of fasteners.

On the next slide, the shear strength values are shown in Table J3.2.
The tensile strength, written as Fnt, is in the second column. The nominal shear strength symbol, Fnv, is in the third column and is expressed as a percentage of Fnt.

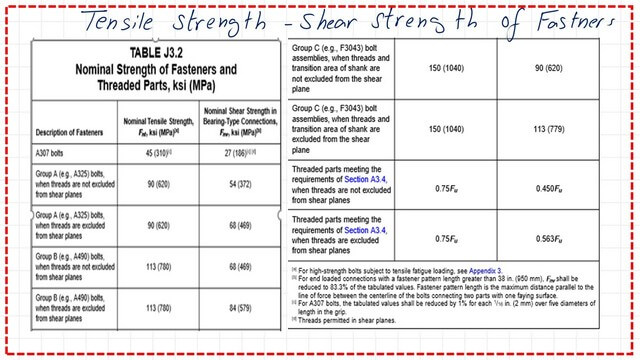

For instance. In the first column, there is a description of the type of fasteners, A307, Group A ,A325-N ,which are not excluded,;the tensile sstrength Fnt=90ksi,;and tnv=0.60*90=54 Kksi. The value shown in brackets is the MMP value. ForA325-X, Fnt=90 ksi. Fnv=68 ksi. For the case of X, the shear strength increases. There are categories: b) ASTM-A490 bolts N&X, with the corresponding Fnt and Fnv values shown.

The shear strength increased for X. Category b) shows ASTM-A490 bolts N&X with the corresponding Fnt and Fnv values.

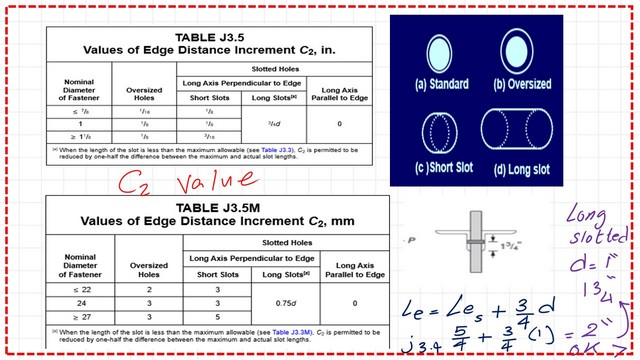

The following Table J3.5 and J3.5M show the required values for C2.

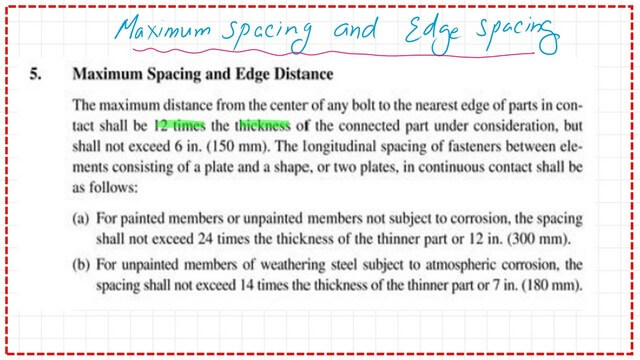

The last slide image is quoted from the specification for the maximum spacing and edge distance. The maximum spacing from any bolt to the nearest edge shall not be more than 12 times the thickness of the connected part but shall not exceed 6 inches.
